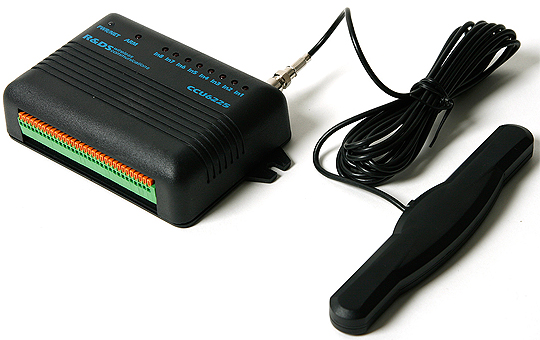

CCU6225-LT

An economic series of uncompromising quality!

The new, "facilitated" version of CCU6225 controller. In spite of the fact that device is simplified analogue of CCU6225 controller, it possesses a good functional set.

Price: 146.00 EUR w/o VAT

The quantity of adjustments at configurations is a minimum, what is useful for those who does not wish to spend a lot of time for studying the device lofgic work.

Technical specification

GSM module (GSM900 / 1800MHz) built-in;
8 Inputs (Zones);
Programmed entry levels (4 modes);
Programmed zone names;
7 Outputs:
- 2 realys;
- 4 outputs such as "an open collector", GND, loading 0, 5A / 12V;
- 1 output such as "an open collector", submits + 12V, current limited 0, 9A.
Programmed outputs names;
4 numbers for:

voice calling;
SMS sending;
calling and SMS sending.

Control by:
- DTMF commands;
- SMS commands.
The voice module is built-in;
Voice messages in the voice module can be programmed through PC;
Option to connect external mic;
Option for temperature measurement;
The controller has an opportunity of connection of external button "ARM" or contact for reading key Touch memory DS1990A for change of a mode "ARM / DISARM";
Programming via USB or RS-232 (Com port).

Main package contents

CCU6225-LT
GSM antenna
CD with software and user's manual
Cable for programming controller via PC

Additional accessories (may be ordered for an extra payment)

Temperature sensor RTD-02
External microphone RMA-02
Touch memory reader
Touch memory key/keys
Metall box with transformer and power supply

Call +372 555 400 79 and try CCU6225-LT voice menu!
Password 1234 and to press * on your phone.

RTD-02
Temperature sensor RTD-02

User/Installation manual
RMA-02
External microphone RMA-02
