Gsm Eco

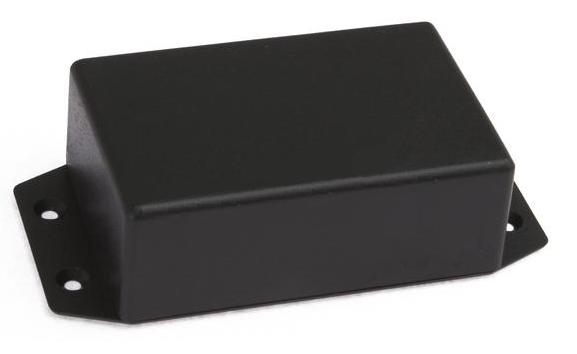

GSM Alarm and Control system Gsm Eco

Programming manual

Alarm and control system Gsm Eco is used to inform a maximum of two users through the GSM network that an alarm has occured. Users may also control one electrical device via their mobile phones, e.g. they may switch a lighting system on and off or open and close a gate.

Gsm Eco may be connected to an intruder alarm control panel. It has two digital inputs (normally open), so that one detection device may be connected independently of the intruder alarm control panel, or alternatively two detection devices may be connected to Gsm Eco without needing a control panel.

When a triggered zone is restored to pre-alarm, the system also sends an SMS or voice message confirming that this has been done.

Either user may turn the heating or lighting on or off, open gates, lift blinds etc. by sending to Gsm Eco a text message. Only one electrical device may be controlled in this way. The system remembers the status of output in the case of temporary electricity failures.

The system will ignore requests and calls coming from unknown telephone numbers.

System application examples

	Object security option protects your home 24/7 and instantly informs about unauthorized entry by SMS and call to the cell phone.
	Information about water-supply accident (flood detection) prevents from damaging your personal assets and those of your neighbours in case of accident water overflow from the water-supply system.
	Electrical devices control by SMS - ability to remote control electrical sauna, water pump, boiler, watering device, switch on or off the lighting, heating and else.
	Sound channel usage option allows the user to hear what’s going on in the secured premises through own cell phone.
	Fire prevention - in case of the first smoke detection system informs you about it by SMS text message or call.

Why choose Gsm Eco

• Auto caller, used to inform users through GSM network that alarm has occured;
• User can hear what's going on in the secured premises through own cell phone;
• Simple installation and configuration - for quick system start it is enough only to enter user phone number. Just connect 3 wires (+12V, COM and Siren-Bell).

Technical specifications

• GSM modem frequency: 850/900/1800/1900 MHz
• Power Supply Voltage: 9-15V DC 300mA max
• Current used in standby mode: 30mA max
• Number of digital inputs (normal open): 2
• Allowable digital input voltage values: 0-30V
• Impulse duration: >600ms
• Number of Outputs: 1
• Output max parameters: 500mA; 30V
• Dimensions: 108x52x30mm
• Operating Temperature: -35...+55°C
