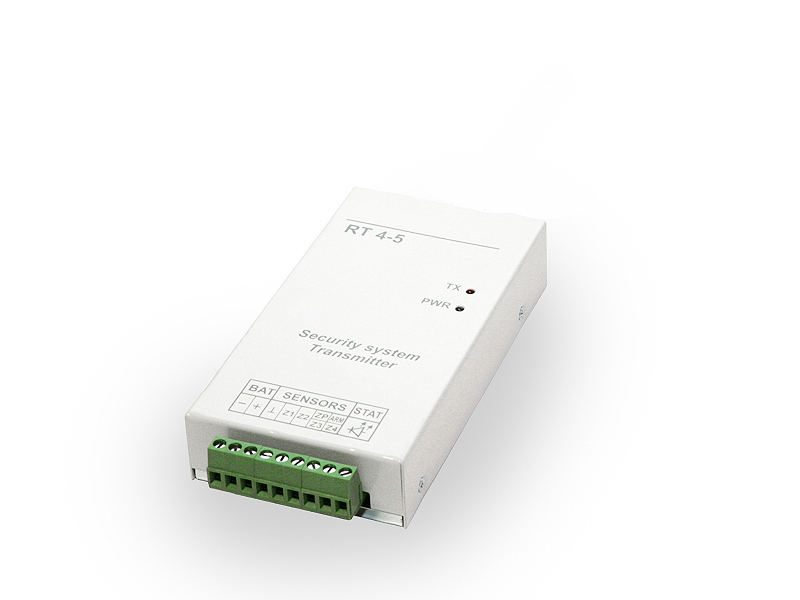

RT4-5m/63 transmitter

RT4-5m/63 transmitterTransmitter RT4-5m/63 is designed for collecting information about guarded object, its processing and further transmission via radio channel to the receiving device RR-63RT.
FREE shipping by Registered Air Mail to any country for all orders!
Price: 0.00 EUR w/o VAT
Besides, object device controls its own supply and in case of its decreasing (less than 10V) transmits information about it to the receiver. If state of inputs of the object device has not been changed for a long time the test message is formed and transmitted to the central alarm receiver.

General technical parameters of RT4-5m/63

Frequency range: 139 -174MHz
Radiation class: 8K0F1D
Carrier power: not more than 5W
Frequency deviation: not more than 2,5kHz
Carrier frequency inconsistency: not more than 10×10-6
Radiation bandwidth at level of -30dB: not more than 8kHz
Extraneous emission power: not more than 0.25mW
Number of transmissions for one event: 3 - 6
Average time between transmissions: 1.2s
Power supply voltage: 11-14V
Dimensions: 155x70x25mm
