Enigma II DR-81000

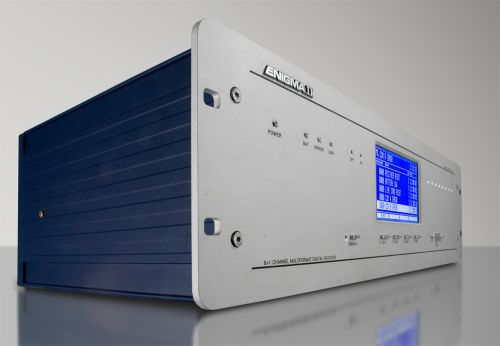

The standard unit consists of a CPM Central Processing Card, two LC Line Cards and a PWR Power Card. With additional Line Cards, the receiver can be enabled to monitor up to 8 telephone lines. The ENIGMA II DR-81000 can receive and decode most of the popular and commonly used communication formats.

The ENIGMA II DR-81000 stores all events with time and date stamped. All information is displayed on the large LCD screen, and the events may be printed and/or forwarded to a computer. To ensure security, all programming functions, including the adjustment of the real time clock and date is password protected.

• LC2 Line Card
• CPM2 Card
• PWR2 Power

Compatibility

The ENIGMA II DR-81000 Digital Receiver is compatible with the most commonly used automation software packages. The receiver has been tested to work with the following software:

• Alarm SyS
• SIMS II
• Microkey SIS
• Patriot
• WinSC (Security commander)

For other automation software, generally, it can be used with selecting the Enigma XM88422 or the Surgard MLR2 interface.

System Overview:

• Up to 8 lines per receiver;
• 2000-event non-volatile event buffer in the CPM2;
• 500-event non-volatile buffer on each line cards;
• Programming is stored in internal EEPROM in the CPM2 and in each line cards;
• Real-time clock and calendar in the CPM2;
• 2 independent fast RS232 ports;
• 1 parallel printer port;
• 1 USB port (HS, USB2.0 compatible);
• 1 Ethernet port (10Mbps, option);
• Programmable serial port configuration;
• Fast transmission of multiple events to the computer and/or printer to ensure fast operator response;
• Continuous control of the cards by the CPM2;
• Continuous check of the receiver-computer link with "heartbeat" protocol;
• Caller ID capability (Bellcore and ETT);
• Telephone line supervision;
• Support of all mostly used PSTN formats:
• 3/1, 4/2 formats with or without parity
• 4/1 without parity at 10 – 40 bps
• 4/1, 4/2, 4/3 DTMF formats
• 3/2 and 4/1 with checksum formats optional
• Extended formats are optional
• Acron DTMF format
• Ademco Contact ID format
• Ademco SuperFast or High Speed format with or without parity
• Ademco Express format
• FBII Superfast format with or without parity
• SIA format:
• 110 and 300 baud, tone and data acknowledge
• Full level 2, partial level 3 support.
• Handshakes (in programmable sequence):
• 1400Hz
• 2300Hz
• Dual-tone
• SIA FSK/CFSK
• Large graphical LCD screen;
• Event libraries for plain language message display capability;
• All Cards can function individually to ensure uninterrupted operation during servicing, hardware or software upgrades;
• Each line card has an output for 2-way audio;
• Inputs on the CPM2 for external acknowledge and tamper supervision;
• 2 Programmable Outputs on the CPM2;
• AC failure detection and backup battery supervision;
• High-performance Flash RISC microprocessors;
• Firmware Upgrade by user supported;
• Highly reliable SMD technology;
• Standard eurocard circuit board design for reduced complexity and easy servicing.

• IP alarm transmitter VBIP



  The VBIP Module can be used to connect any control panel, with telephone communicator, supporting Contact ID format, to the local network (LAN) or internet (WAN), and report the control panel events to the monitoring station via the IP network.
