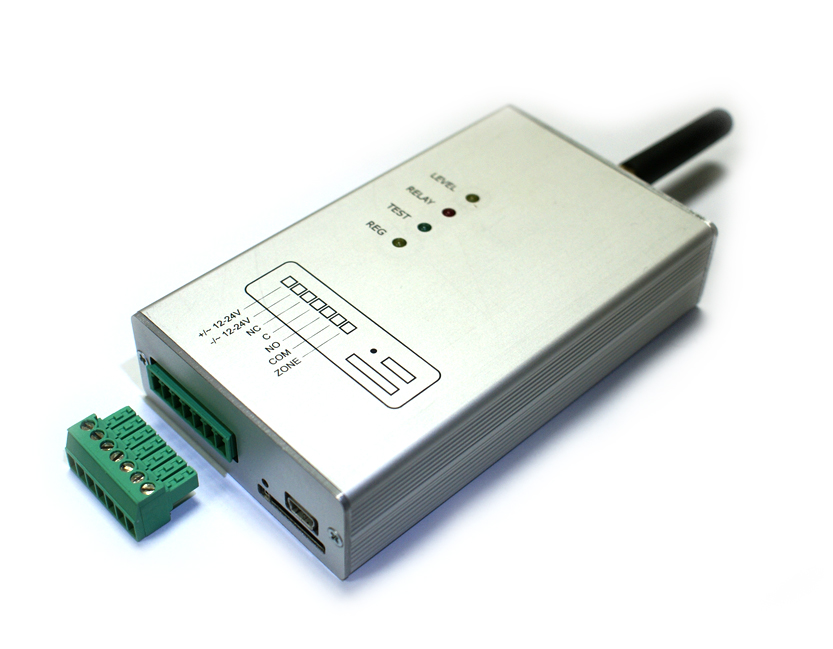

GSM Gate Control 200

A module for opening and closing of electric doors, gates and bars by GSM call.

Price: 124.00 EUR w/o VAT

User/Installation manual

Configurator

Firmware Update (091129)

Control of relay outputs (according to the mode and access authorization adjusted) is performed by calling the SIM card number set in GSM Gate Control.

Control can be executed only from authorized telephone numbers preset in the module. Identification and control functions are allowed only for authorized numbers, otherwise the call will not be received.

There is a possibility of sending SMS-messages informing of the status of different switch contacts (tamper, end-state etc.).

Implementation

Controlling doors, gates, bars and other electronic devices using GSM network;
Notification by SMS about faulty outputs and switches' status.

Main features

GSM Gate Control 200: up to 200 users;
Controlling switching relays, with free calls and telephone number recognition;
Sending SMS-messages with the desired text, activated by module inputs;
Programmable by USB or SMS.

Technical specification

Power supply: 12-24V AC/DC
Nominal current: 100mA
Maximum current: 400mA
Type of input:

NC
NO
EOL 2,2kΩ

Type of output:

Level mode
Pulse mode

Operating temperature: -20ºC - +55ºC
GSM frequency: 900MHz/1800MHz/1900MHz
Dimensions: 110 x 65 x 25mm

Main package contents

GSM Gate Control
GSM antenna
CD with software and user's manual
USB cable
